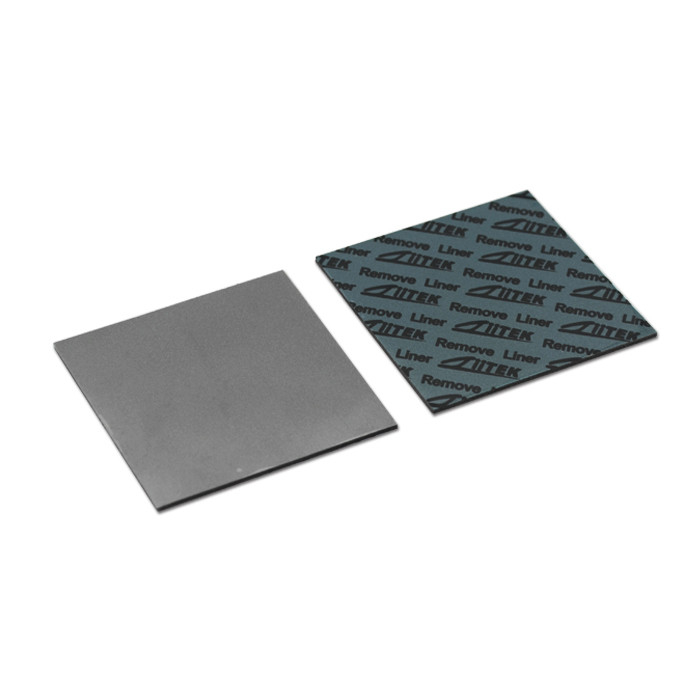

Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics

Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics
Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics  Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics

Large Image :  Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics

Product Details:
Place of Origin: China
Brand Name: ZIITEK
Certification: UL and RoHs
Model Number: TIF100-50-11S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: negotiation
Packaging Details: 1000pcs/bag
Delivery Time: 3-5work days
Supply Ability: 10000/day
Detailed Product Description
Products Name: Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics Thermal Conductivity& Compostion: 5.0 W/m-K
Specific Gravity: 3.15g/cc Construction: Ceramic Filled Silicone Elastomer
Color: Gray Continuos Use Temp: -45to 200℃
Hardness: 45 Shore 00 Keywords: Thermal Gap Filler
Highlight:

thermally conductive filler

,

high temperature phase change materials

,

5 W thermally conductive gap filler pads

Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics

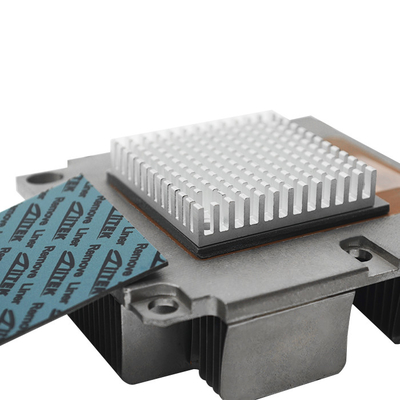

The TIF100-50-11S  use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.


Features:


>  Good thermal conductive:5.0 W/mK

>  Naturally tacky needing no further adhesive coating
>  Soft and Compressible for low stress applications
>  Available in varies thickness


Applications:



>  Heat Sinking Housing at LED-lit BLU in LCD
>  LED TV and LED-lit lamps
>  RDRAM memory modules
>  Micro heat pipe thermal solutions
>  Automotive engine control units
>  Telecommunication hardware
>  Handheld portable electronics
>  Semiconductor automated test equipment (ATE)

Typical Properties of TIF100-50-11S Series
Color Gray Visual
Construction & Compostion Ceramic filled silicone elastomer ******
Specific Gravity 3.15 g/cc ASTM D297
Hardness 45 (Shore 00) ASTM 2240
Continuos Use Temp -40 to 200℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant 6.0 MHz ASTM D150
Volume Resistivity 5.0X10¹³Ohm-meter ASTM D257
Fire rating 94 V0 equivalent UL
Outgassing(TML) 0.45% ASTM D595
Thermal conductivity 5.0W/m-K ASTM D5470

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)

Consult the factory to alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Wholesale 5.0W Silicone Thermal Pad Thermal Gap Filler For Automotive Electronics  0
